Main featrues: • Designed According the high request and the reliable function,the operation of the machine is humanization,can accomplish the setting,revision, implement, replacing and memories function in a shot time,and display with a exact data. • All the drive rollers…
Main featrues:·CNC control system, fault display, production control, remote maintenance.·Automatically detects location system, rapid hang baffle of the drive system, can changeorder rapidly.·Widening type dust collector, remove electrostatic device, a central dust collection,compressive resistance, improve the dust collection.·Adsorption wheel box…

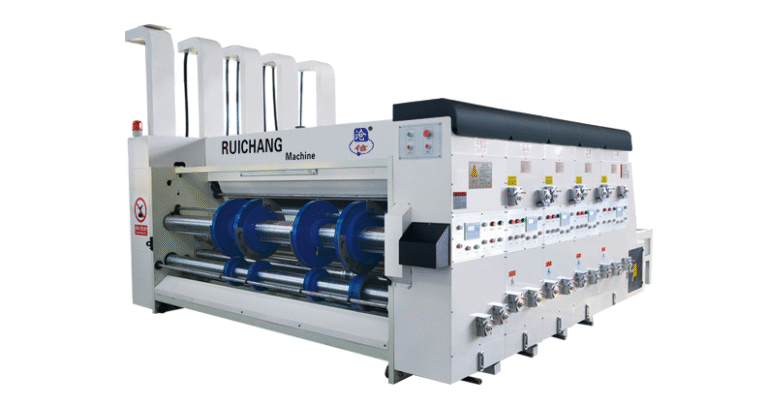

Main featrues: • Control on the main console and each unit console with display adjustment system, store repeated order, easy for operation. • Motorized printing plate mounting,auto reset, quick change. • Each unit is equipped with Emergency Stop switch to…
Main featrues: • Control on the main console and each unit console with display adjustment system, store repeated order, easy for operation. • Motorized printing plate mounting,auto reset, quick change. • Each unit is equipped with Emergency Stop switch to…
Main featrues:•The whole machine is designed according to the high demand, reliability function and safetyproduction.Selects the high quality materials and accessories, all the drive rollers adopted high qualitysteel materials,hard chrome plating and the surface treated by lapping finish.•Fixed units, each…
Slotting unit: Pressing wheel: manual type slot of a complete line pressing ,preloading. Manually adjust the length,width and height of the cartons and folding partes Digital display. Manually adjusted scoring wheel clearance with adjustment data displayed on the dial 7mm alloy…
Main featrues: · Designed According the high request and the reliable function,the operation of the machine is humanization,can accomplish the setting,revision, implement, replacing and memories function in a shot time,and display with a exact data. · All the drive rollers…
Design speed:150m/min,200m/min Special line on the surface of the glue applicator,surface are hard chrome plating,even glue supply,low cost.Adjustment for gap between glue roller and doctor roller by electric or manual are optional, Digital read out for the gap between glue roll and doctor roll is optional.Press roll moves up and down by pneumatic. Self-circulating glue supplying system to avoid glue hardenning and to control glue quantity Keeping the glue good quality and saving.Press roll and press bar are optional.
NC Sheet cutter Ø Single-pole, single-faced corrugated paper cutter is to achieve long-aspect fixed cutter device has a short time for a single, high cutting precision, speed, etc., for a single time less cardboard waste, suitable for supporting the use of high-end color printing packaging board Ø The machine adopts PLC touch screen design, operating personnel a comprehensive understanding of production Ø Use variable frequency motor speed control, servo drives, reducing mechanical reduction gear failure rate caused by wear and tear during use, so cutting length more accurate (error average rate ± 1.5mm), better mechanical properties

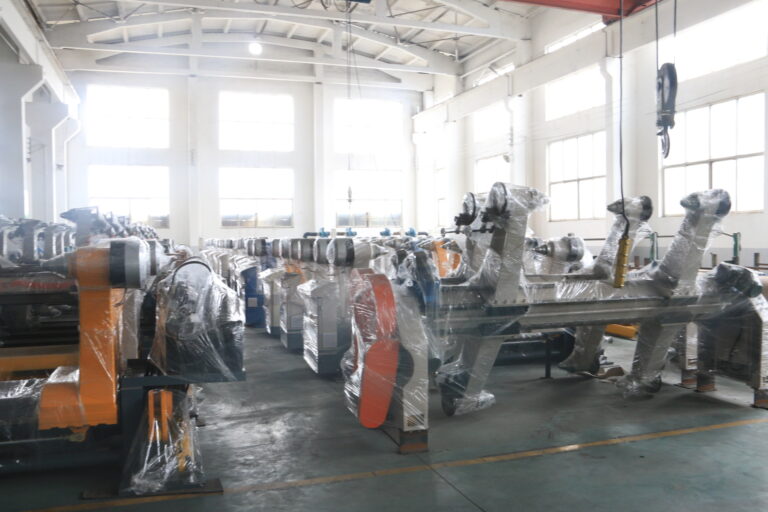

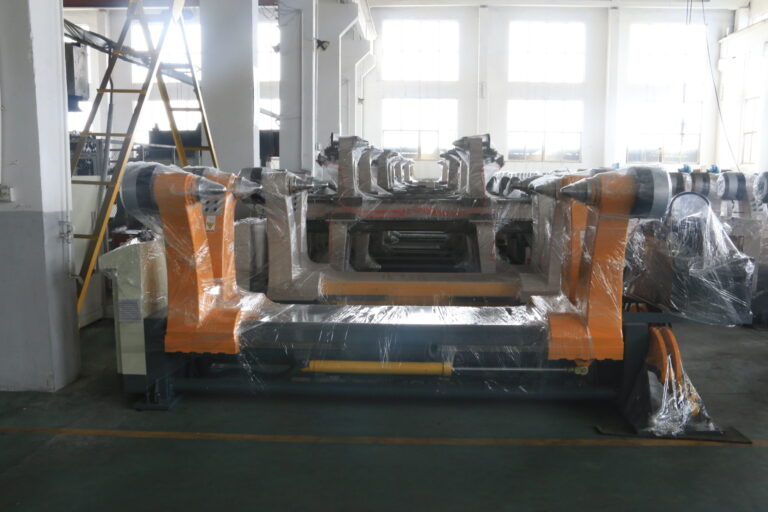

Purpose and Characteristics: The sturcture is double rotary shafts with four arms;Support two paper mill rolls on both arms at the same time.Hydraulic control for paper mill roller up-down, clamp-open and centering.Web tension is controlled by pneumatic brake or manual brake; Springiness chucks are optional. Effective width:900mm-2550mm;Maximum paper roll diameter: 1500mm. Maximum support weight:3T.Main axis: diameter 242mm
Purpose and Characteristics: Single roll with four arms,Mill rolls on both arms can be bearing at the same time.Round-plate type manual brake,the web tension is adjusted at any time.Clamping and rotary structure set fixed torque clutch,operate safety. Maximum paper roll…
Diameter of pre-heater roller:f600mm,f800mm,f900mm,f1100mm available discretionarily. Expiry width: 1400mm-2200mm Electromotion adjust the dimension of per-heater. And the range of adjustment: 60270 Each roller surface are treated with exactitude milling and plating rigid chrome,glabrous and durable. Adopt butterfly seal or plat design. Insure reel paper is heated averagely. Can be collocated in monolayer or mulriple.
