open＆close type roller transfer top printer automatic high speed printing slotting and die-cutting machine

Main featrues:
·CNC control system, fault display, production control, remote maintenance.
·Automatically detects location system, rapid hang baffle of the drive system, can change
order rapidly.
·Widening type dust collector, remove electrostatic device, a central dust collection,
compressive resistance, improve the dust collection.
·Adsorption wheel box transmission, gear transmission adopting alloy steel precision
grinding, ensure accuracy of life.
·”Lift-down “type high-speed folding paper recycling collection system, protective seal
surface chafed, high production efficiency.
·Electrical components,drive bearings all adopt the international brand, through the
European CE certification

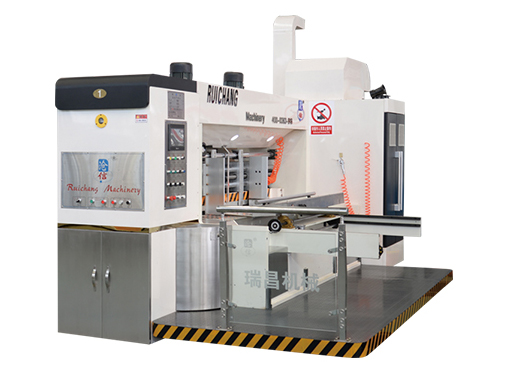

Feeding unit

·It is controlled by the master computer and unit man-machine interface

·Front feeding system adopt frequency conversion control air volume, make feeding paper accurate,

steady.

·Side, front baffle adopt movement linear guide system, make regulating stability and accuracy.

·Appointed neat side control system, deliver paper smoothly, paper holder frame displacement

electric adjustment

·Widening type dust removal system, get rid of electrostatic equipment, pressure resistance, dust removal more perfect.

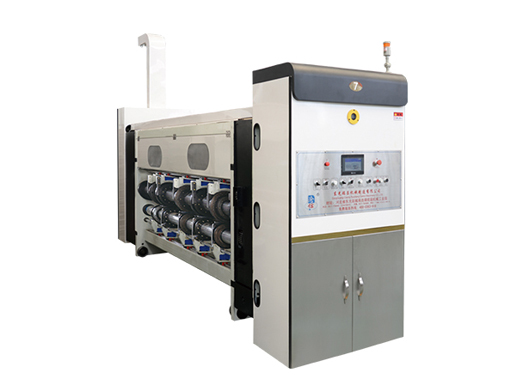

Printing unit

·It is controlled by the master computer and the man-machine interface ‘

·On both sides of the scroll lock version,stable transmission, accurate. automatically detects reset.

·Set a controlled in ink circulation system – ink section alarm protection, lack of ink, setting the ink ,

rapid to clean.

·Optional:Double dry ink scraper system(national invention patent).

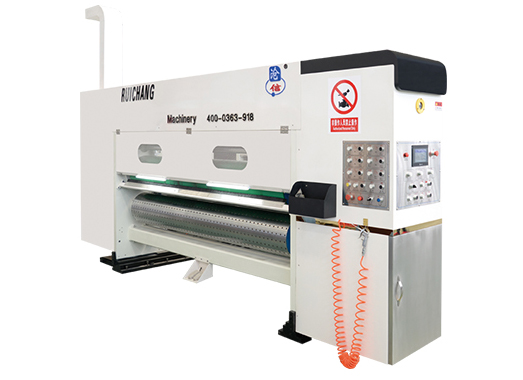

Slotting unit

·It is controlled by the master computer and the man-machine interface

·Precision linear guide rail and cross axis linkage displacement system, stable and accurate.

·Precision ball screw displacement system, high rigidity guide, ensure accuracy of life.

·High adjustment of slot box is the inner gear mechanism, independent drive box control.

·Finalize the design wheel, slotting cutter, automatic clearance adjustment, knife in the large displacement mechanism

DIE-CUTTING UNIT

·It is controlled by the master computer and the man-machine

interface .

·Adopting pneumatic tooth clearance locks, guide wheel fast transversal, electric clearance and setting

adjustments.

·Guide wheel fast transversal, electric clearance and setting adjustments.

·The cushion roller automatic transverse institutions,it can change quickly， set controlled quantity

microscale pad system.

·Adopting “setting controlled quantity ”precision speed difference compensation system, to ensure

that the die cutting precision, wide scope of compensation.
