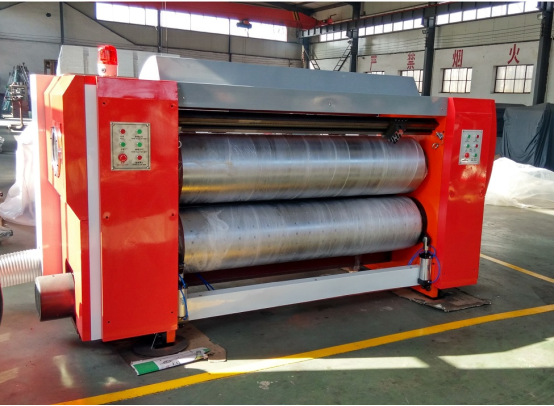

high-speed rotary die-cutting machine

High speed computer contral rotary die cutting machine

The machine in the original traditional circle pressure circle, on the basis of the mechanical structure, draw lessons from Martin of the world’s advanced technology, developed by our factory technical personnel’s meticulously make a mechanical structure more reasonable and perfect.

Function introduction：
l The whole machine adopts light, electricity, gas, joint control, safe and efficient; But one time slot, cutting Angle, paper, separating, clasp hands, and other processes, particularly suitable for special-shaped carton processing;

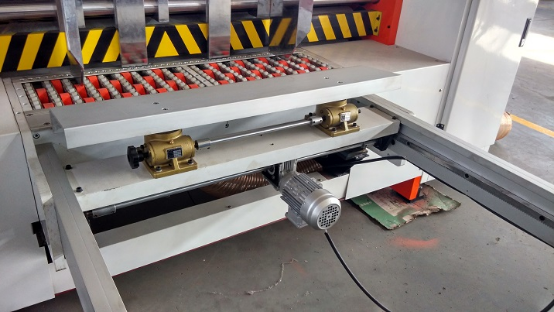

l Adopt vacuum adsorption auxiliary air supply system, air pressure is adjustable; Equipped with flexible feed mechanism and the function of every piece of paper;
l The machine gear highfrequency heat treatment, surface hardened into fine; Using spray type automatic lubrication, greatly improve the operation precision and service life;
l Die-cutting phase adopts planetary gear mechanism adjustment, convenient and accurate.
l Shaft tube is made of high quality steel, internal conditioning, surface grinding hard chromium plating and balance processing, increase of operation;
l Die cutting pads used Taiwan super resistance to companies to import, install quickly and easily switch, die cutting edge smooth, long service life, up to 10 million times or so, greatly reduce the cost.
l Machinery die cutting roller adopts lateral movement, a distance of 40 mm, move up and down and pneumatic device control cutting die, prolong the service life of the rubber gasket; The speed difference device without operator intervention automatic adjust the roller speed, ensure that each batch of carton size.
