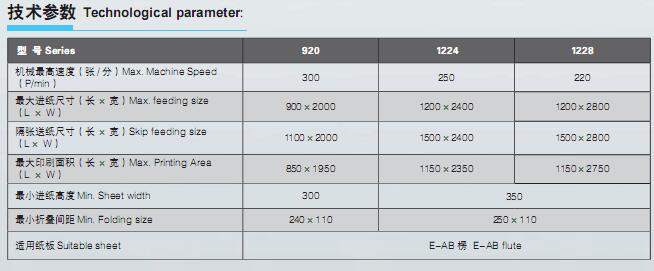

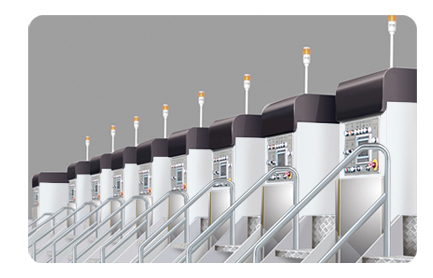

HG fix type Automatic high speed printing slotting and die cutting machine

Main featrues:
•The whole machine is designed according to the high demand, reliability function and safety
production.
Selects the high quality materials and accessories, all the drive rollers adopted high quality
steel materials,hard chrome plating and the surface treated by lapping finish.
•Fixed units, each unit adopts the vacuum adsorption type conveyer, printing unit topping
adopts servo control, to achieve precision printing network.
•The machine adopts PLC touch screen control, can be stored and reuse the ordered data, it
can change rapidly ,operate more convenient.
•Can realize the fault distance detection, through the network ,eliminate the trouble equipment.
•Automatic zero and automatic reset.
•Transfer roller impression cylinder, the clearance of anilox roller is controlled by computer
•It adopt the paper central dust collection system.

FEEDING UNIT

·Can be continuous or skip paper ( with counter).

·It adopt the lead edge roller to feed ,can adjust the route ,to

ease the pressure on drawing paper roll.

·Lead edge feeding increase the section flow rate to make

feeding smoothly and accuracy.

·Frequency conversion control vacuum air flow and pressure,

to match the board size.

·Paper glue roller for double glue, soft inner and outer hard,

keep the inner elastic and guarantee the surface wear resistance, reduce the

cardboard was be squashed to be be sent in.

·Dust cleaning device:The brush and blower to remove cardboard surface

confetti.Multiple fan straight smoke added electrostatic brush and turning

round brush, the greatest degree remove dust board surface.

·About paper roller clearance, the position of the left right bar is adjusted by

computer.

·Equipped with brush device to sufficiently eliminate dust and scraps as well as

foreign substances on the printing surface and to improve printing quality

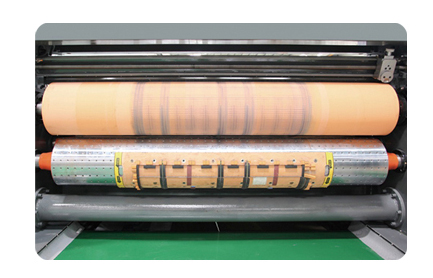

PRINTING UNIT

·Scroll hanging version,locking 360 degrees, let operation of

hanging plate is simple, more accurate registration.

·Changing plate quickly,it can fix the incline error when paste

the plate, so that reach to the range of amendment.

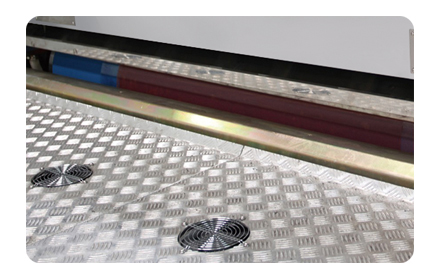

·Adopting vacuum absorb and high precision to convey , high

topping precision.

·The fixed group be widen in printing unit,,it can help dry the

ink,to guarantee the topping precision.

·Printing roll phase adopt servo motor to drive,can connect to

the Endat high precise encoder,guarantee the control precision of the servo

drive system,topping-control contact to the servo directly,quick response

and high precision.

·The transverse phase ,computer and electric-digital control.

·Imported brand scraper ink system: ink cavity body for non-metal material,

special never rust, easy to clean;Rapid change around the blade

·Adopt automatic cleaning -switching device .Let the ink recycling more

thoroughly and save the ink,when clean or change the color of the ink,can

save ink 0.4-0.5kg per unit once

Polish unit

The fixed group be widen of the polishing unit,it can help speed up the

oil-dry.

·You can adopt water base or UV varnish to polish when the polishing unit

works,also to use as printing unit.

·Equipped with card sensor to make the operate safe and reliable.

Drying unit

· With servo motor driving ,guarantee not effect the printing precision

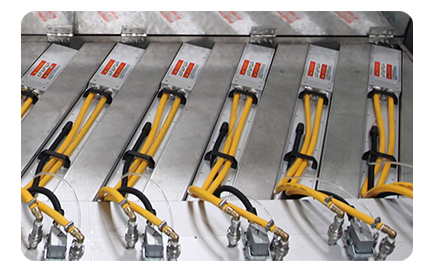

· Drying unit can adopt Infrared or ultraviolet light system.

· According to the wide of paperboard, you can segment control infrared

lamp, energy saving.

· UV drying method can dry the UV oil of presswork quickly,Avoid

phenomenon of tow flowers die cutting,At the same time effectively

improved the product printing speed.

Die cutting unit

· With the servo motor drive,guarantee the shake of printing unit is few,to

make print accurate.

· Rubber gasket roll compensation is controlled by independent motor

drive, rubber mat roller speed, compensation scope± 3.5 mm, make the

rubber gasket roller and die cutter roller speed is consistent.

· Rubber gasket roll machine screw reversing 50 mm winding device,

improve the service life of the rubber gasket.

· Transverse phase, computer and electric control, digital control in the

plus or minus 10 mm.

· Die-cutting phase adjustment by PLC, servo drive

· The structure of the rubber gasket roller , keep the rubber gasket

surface is flat and level.
