Product Description
Thin Blade Slitter Scorer
Characteristic and applications of common thin blade machine
Adopt forward press feeding and double rubber roller pull strings to make cardboard running smooth.

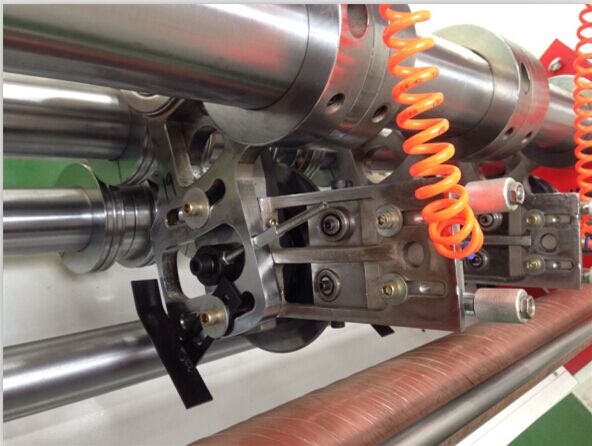

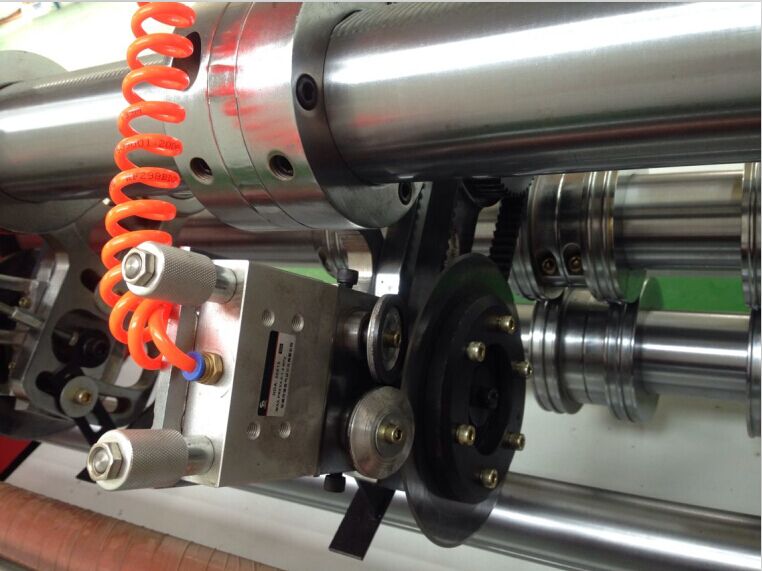

Cutting part: adopt high quality tungsten alloy blade in highly sharp and long service life. Cutting out the cardboard incision neatly, no fracturing and burr..
Scoring Part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
Automatic and manual pneumatic grinding knife way. Grinding knife while working, that improve work efficiency.
Electrical devices are from domestic famous brands or imported products with reliable performance.
Corrugated board production line equipment: use thin blade (about 1 mm thickness) to cut corrugated board in longitudinal line and press at the same time. Applicable board width is about 2500 mm and cutting board top speed is 80 m/min.
| Specifications | |
| Model | 2000 |
| Boundary dimension | 3200*750*2200 |
| Motor power(kw) | 4.0 |
| Maximum cutting width(mm) | negative knife |
| positive knife | 1800 |
| Minimum cutting width(mm) | negative knife |
| positive knife | 140 |
| Minimum pressing line width(mm) | positive knife |
| negative knife | 80 |
| Indentation depth | 0-10 |
| blade size | φ200×122×1.2 |
| Cutting and line pressing supporting type | Eight knives and ten lines |
